  2. Speco 64 Channel 8K H.265 NVR with Smart Analytics

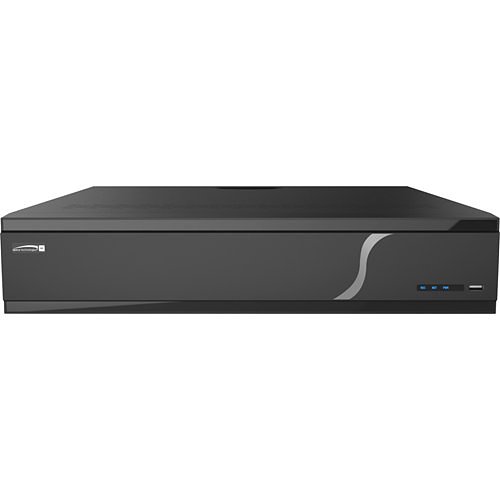

Speco 64 Channel 8K H.265 NVR with Smart Analytics

SO-N64NR20TB https://mysecurity.odoo.com/web/image/product.template/160961/image_1920?unique=e2e3d14

CAD$ 2,832.77 2832.77 CAD CAD$ 2,832.77 GST Excluded

CAD$ 1,888.51 GST Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Product Overview

The Speco N64NR20TB is an advanced, high-capacity 64-channel network video recorder designed for large-scale enterprise surveillance. This commercial-grade unit supports real-time recording up to 16MP (8K) resolution at 30fps. Equipped with built-in Smart Analytics, the system processes advanced data including facial recognition, license plate recognition (LPR), and people/vehicle counting directly through connected Speco smart IP cameras.

With H.265 video compression, it reduces storage demands by up to 50% compared to legacy code structures. It comes pre-configured with 20TB of surveillance-grade storage and features RAID configuration support alongside 8 internal SATA ports for extensive system scaling.

Key Features

  • Channel Capacity: 64 channels supporting up to 16MP (8K) IP camera inputs
  • Storage Capacity: Pre-installed 20TB HDD (expandable up to 128TB via 8 internal SATA ports)
  • Video Compression: H.265 / H.264 auto-detection mapping
  • Monitor Outputs: 1x HDMI (up to 8K resolution), 1x VGA monitor output, plus additional sub-monitor HDMI options
  • EZ Setup Suite: Built-in wizard utilities (EZ Camera discovery, EZ Network configuration, and EZ Copy USB export)
  • Advanced Smart Analytics: Human & vehicle tracking, line crossing alerts, missing object indicators, face search (up to 64 channels), and an internal database holding up to 10,000 face images
  • Network Capability: Massive 640Mbps network bandwidth with dual network cards (LAN 1 for internal network, LAN 2 for local camera subnets)
  • Compliance: Full NDAA Section 889 Part B compliance guidelines met
  • Warranty: 5-year limited manufacturer warranty on the chassis (3-year warranty on the internal storage drives)

Technical Specifications

  • ADI CA Product Code: SO-N64NR20TB
  • Manufacturer Model Number: N64NR20TB
  • UPC Identification: 030519036733
  • Audio Input/Output: 64-channel IPC audio network input, 1x local RCA audio input, 1x local RCA audio output (Supports 2-way audio communication)
  • Local Alarm Terminals: 16-channel local alarm inputs / 4-channel local alarm outputs
  • RAID Interface Types: Supports RAID 0, 1, 5, 6, 10 array management
  • External Expansion Interfaces: 2x eSATA storage ports, 1x front USB 2.0 port, 2x rear USB ports (1x USB 2.0, 1x USB 3.0)
  • Form Factor: 2U Rack mountable system framework (rack ears included)
  • Dimensions: 17.5" Width x 17.1" Depth x 3.5" Height (445mm x 436mm x 90mm)

 DATA SHEET ​ ​ ​ USER MANUAL
