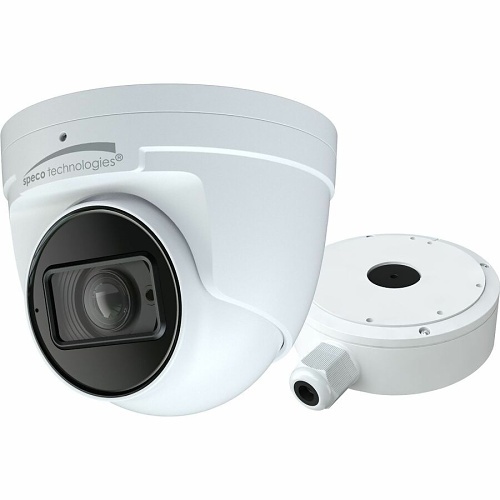

Speco O8T9M 8MP IR Turret IP Camera with Advanced Analytics and Junction Box, 2.8-12mm Motorized Lens, White

Product Overview

Monitor an indoor or outdoor area with the white O8T9M 8MP Network Turret Camera from Speco Technologies. This NDAA-compliant unit uses a 1/2.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 164' of night vision. A 2.8-12mm motorized varifocal lens delivers a 96 to 32° horizontal field of view.

The camera features a built-in microphone and an audio input. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Key Features

• Resolution: Supports up to 8MP @ 30fps
• Power: Built-in standard PoE (IEEE 802.3af) or 12VDC
• Lens Type: 2.8-12mm Motorized Varifocal Lens (4.3x Optical Zoom)
• Night Vision: IR range up to 164' (depending on scene reflection)
• Wide Dynamic Range: True WDR operation (120dB)
• Audio: Built-in microphone & 3.5mm audio input
• Advanced Analytics: Line crossing, region intrusion, video blurring detection, face detection/capture, and people/vehicle detection & counting
• Durability: IP67 weather resistance (Operating temperature: -40°F to 140°F)
• Compliance: NDAA Compliant & ONVIF Profile G/S/T conformant
• Inclusions: Junction box included (works with NPT/BSP specifications)

Technical Specifications

• ADI Product Number: SO-O8T9M
• Manufacturer Part Number: O8T9M
• UPC Code: 030519040006
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Video Compression: H.265, H.264, MJPEG
• Minimum Illumination: 0.015 lux @ F1.4 (Color), 0 lux with IR
• Field of View: Horizontal: 96° to 32°, Vertical: 64° to 18.4°, Diagonal: 103.8° to 36.5°
• Local Storage: Single slot microSD/microSDHC/microSDXC up to 256 GB
• Network Protocols: UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPS, QoS
• Max Power Consumption: 8.0W (Max)
• Dimensions: 5.1" Diameter x 4.1" Height
• Weight: 1.48 lbs (Body only)
