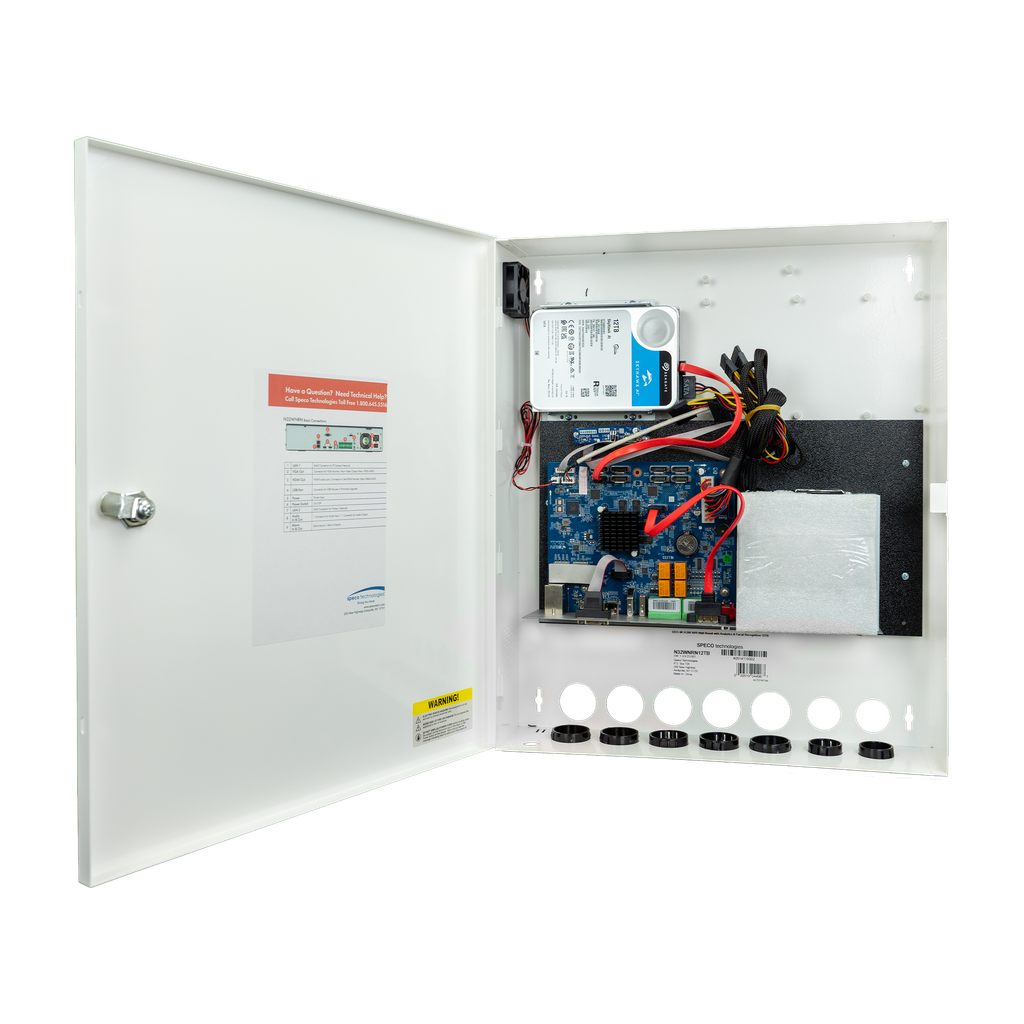

The Speco N32WNRN40TB is a 32-channel 4K H.265 wall-mount Network Video Recorder with
40TB HDD pre-installed. Designed for demanding commercial and enterprise deployments, it
records up to 12MP (4K) at 20fps and 8MP at 30fps across all 32 channels simultaneously,
with a 320Mbps total bandwidth capacity.
Featuring dual Gigabit Ethernet ports, the N32WNRN40TB allows camera traffic to be
isolated from the main network — improving security and network management. Four
SATA bays support up to 80TB total storage with RAID 0/1/5/6/10 for data redundancy.
Two HDMI outputs and one VGA output enable multi-monitor configurations.
Built-in AI analytics include facial recognition (up to 6 channels), object detection,
and line crossing detection for intelligent, automated alerting. Free DDNS and P2P
services enable remote access via web browser and mobile app without additional
subscription costs. NDAA compliant. Includes a 5-year manufacturer warranty.
Key Features
✓ 32 Channels - up to 12MP (4K) @ 20fps / 8MP @ 30fps
✓ 40TB HDD Pre-installed - expandable to 80TB with 4x SATA bays
✓ RAID 0/1/5/6/10 - flexible data redundancy and performance options
✓ Dual Gigabit LAN - isolate camera traffic from the main network
✓ 2x HDMI + 1x VGA - multi-monitor and control room ready
✓ H.265 Compression - up to 2x more storage vs H.264
✓ Facial Recognition - up to 6 channels of AI face detection
✓ Smart Analytics - object detection and line crossing detection
✓ Two-Way Audio - built-in support for live communication
✓ Free DDNS & P2P Remote Access - browser and mobile app
✓ Wall Mount Form Factor - compact 3.5U chassis
✓ NDAA Compliant - 5-year manufacturer warranty
Specifications
VIDEO
Video Channels
32
Max Recording Resolution
12MP (4K) @ 20fps / 8MP @ 30fps
Video Compression
H.265 / H.264
Total Bandwidth
320Mbps
Video Outputs
2x HDMI, 1x VGA
STORAGE
Included Storage
40TB HDD pre-installed
HDD Bays
4x SATA, up to 20TB per bay
Maximum Storage
80TB
RAID
RAID 0, 1, 5, 6, 10
NETWORK
LAN Ports
2x Gigabit Ethernet (camera/network isolation)
USB
1x USB 3.0, 2x USB 2.0
Remote Access
Web browser and mobile app, Free DDNS and P2P
Concurrent Users
Up to 128
AUDIO & ANALYTICS
Audio
1x RCA audio input, two-way audio
AI Analytics
Facial Recognition (up to 6 channels), Object Detection, Line Crossing Detection
Smart Search
Yes
Pre / Post Alarm Recording
Up to 5 sec pre / up to 10 min post
ENVIRONMENTAL & MECHANICAL
Form Factor
Wall Mount
Dimensions
489 x 413 x 89mm (19.25" x 16.25" x 3.5")
Operating Temperature
-10°C to +50°C (14°F to 122°F)
Operating Humidity
10% to 90% (non-condensing)
Compliance
NDAA Compliant, 5-Year Manufacturer Warranty
Resources & Downloads
Product Overview
The Speco N32WNRN40TB is a 32-channel 4K H.265 wall-mount Network Video Recorder with
40TB HDD pre-installed. Designed for demanding commercial and enterprise deployments, it
records up to 12MP (4K) at 20fps and 8MP at 30fps across all 32 channels simultaneously,
with a 320Mbps total bandwidth capacity.
Featuring dual Gigabit Ethernet ports, the N32WNRN40TB allows camera traffic to be
isolated from the main network — improving security and network management. Four
SATA bays support up to 80TB total storage with RAID 0/1/5/6/10 for data redundancy.
Two HDMI outputs and one VGA output enable multi-monitor configurations.
Built-in AI analytics include facial recognition (up to 6 channels), object detection,
and line crossing detection for intelligent, automated alerting. Free DDNS and P2P
services enable remote access via web browser and mobile app without additional
subscription costs. NDAA compliant. Includes a 5-year manufacturer warranty.
Key Features
✓ 32 Channels - up to 12MP (4K) @ 20fps / 8MP @ 30fps
✓ 40TB HDD Pre-installed - expandable to 80TB with 4x SATA bays
✓ RAID 0/1/5/6/10 - flexible data redundancy and performance options
✓ Dual Gigabit LAN - isolate camera traffic from the main network
✓ 2x HDMI + 1x VGA - multi-monitor and control room ready
✓ H.265 Compression - up to 2x more storage vs H.264
✓ Facial Recognition - up to 6 channels of AI face detection
✓ Smart Analytics - object detection and line crossing detection
✓ Two-Way Audio - built-in support for live communication
✓ Free DDNS & P2P Remote Access - browser and mobile app
✓ Wall Mount Form Factor - compact 3.5U chassis
✓ NDAA Compliant - 5-year manufacturer warranty
Specifications
VIDEO
Video Channels
32
Max Recording Resolution
12MP (4K) @ 20fps / 8MP @ 30fps
Video Compression
H.265 / H.264
Total Bandwidth
320Mbps
Video Outputs
2x HDMI, 1x VGA
STORAGE
Included Storage
40TB HDD pre-installed
HDD Bays
4x SATA, up to 20TB per bay
Maximum Storage
80TB
RAID
RAID 0, 1, 5, 6, 10
NETWORK
LAN Ports
2x Gigabit Ethernet (camera/network isolation)
USB
1x USB 3.0, 2x USB 2.0
Remote Access
Web browser and mobile app, Free DDNS and P2P
Concurrent Users
Up to 128
AUDIO & ANALYTICS
Audio
1x RCA audio input, two-way audio
AI Analytics
Facial Recognition (up to 6 channels), Object Detection, Line Crossing Detection
Smart Search
Yes
Pre / Post Alarm Recording
Up to 5 sec pre / up to 10 min post
ENVIRONMENTAL & MECHANICAL
Form Factor
Wall Mount
Dimensions
489 x 413 x 89mm (19.25" x 16.25" x 3.5")
Operating Temperature
-10°C to +50°C (14°F to 122°F)
Operating Humidity
10% to 90% (non-condensing)
Compliance
NDAA Compliant, 5-Year Manufacturer Warranty
Resources & Downloads
N32WNRN Spec Sheet N32WNRN User Manual N32WNRN Quickstart Guide
