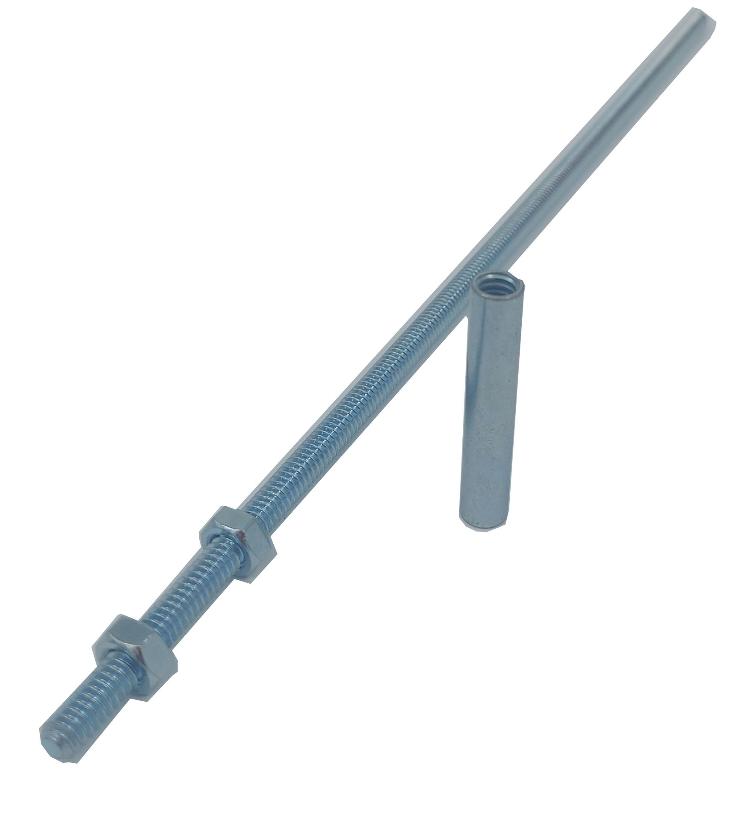

12” (305 mm) Extension Rod for DC860/DC861 Flush Bolt
ERDC860
Features
- For commercial aluminum doors
- Throw: 5⁄8″ (16 mm)
- 12” (305 mm) 1⁄4 – 20 UNC extension rod
- Flush bolt faceplate with 5⁄32″ (4 mm) radius corners
- Mounting hardware included: machine screws
- Supplied with threaded adaptor bushing and locking nuts
- Supplied with nylon rod-end
#ERDC860 12” (305 mm) Extension rod
#DC860G / DC860RG Nylon Guides
#RRDC860 12” (305 mm) Replacement rod
Documentation
Product Page
Disclaimer
- We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
- All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
- We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
- Do not exceed the maximum weight or dimensions recommended by the manufacturer.
- All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
