  2. IDIS DR-8564D-72TB DirectIP 8500 Series 64-Channel 4K NVR, H.265, 72TB Storage, RAID, Dual HDMI, Embedded Linux

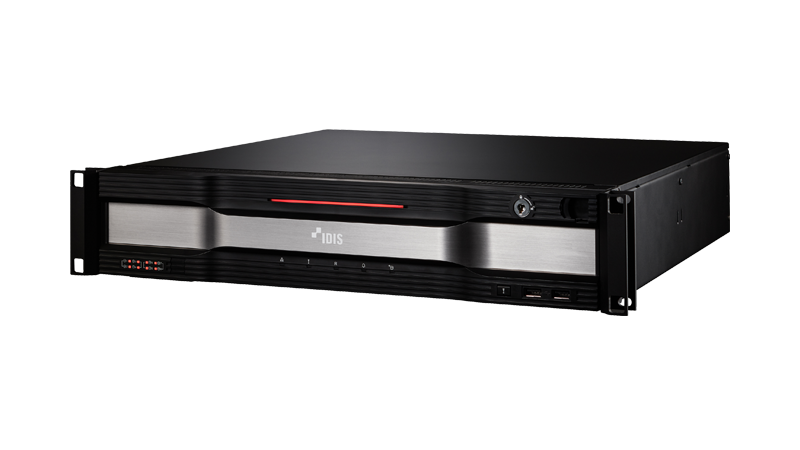

IDIS DR-8564D-72TB DirectIP 8500 Series 64-Channel 4K NVR, H.265, 72TB Storage, RAID, Dual HDMI, Embedded Linux

DR-8564D-72TB https://mysecurity.odoo.com/web/image/product.template/161717/image_1920?unique=be5ad7b

CAD$ 15,329.78 15329.78 CAD CAD$ 15,329.78 GST Excluded

CAD$ 10,219.85 GST Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Product Overview

The IDIS DR-8564D is a high-performance 64-channel 4K network video recorder from the DirectIP 8500 Series. Supporting up to 540 Mbps incoming throughput and 400 Mbps recording throughput at 1920 ips UHD, it is engineered for large-scale surveillance deployments requiring maximum reliability and resolution. With 8 SATA bays, RAID 1/5/10 support, dual HDMI outputs at 4K resolution, and native H.265 compression, the DR-8564D delivers enterprise-grade recording performance. Runs on embedded Linux and supports DirectIP, ONVIF, AXIS, and Panasonic cameras. NDAA and TAA compliant.

Key Features
  • ✓  64-Channel IP Recording - up to 12MP resolution per channel
  • ✓  540 Mbps Incoming Throughput - handles high-density camera deployments
  • ✓  4K Dual HDMI Output - 3840x2160 display resolution
  • ✓  H.265 / H.264 Compression - maximizes storage efficiency
  • ✓  8 SATA Bays with RAID 1/5/10 - flexible and redundant storage
  • ✓  64-Channel Synchronous Playback - review all channels simultaneously
  • ✓  5x Network Ports + 2x SFP - dedicated client and video network separation
  • ✓  DirectIP, ONVIF, AXIS, Panasonic - broad camera compatibility
  • ✓  Embedded Linux OS - stable, secure, maintenance-free operation
  • ✓  NDAA and TAA Compliant - approved for government and federal projects
Specifications
Video Inputs64 IP Channels
Max Incoming Throughput540 Mbps
Max Recording Throughput400 Mbps / 1920 ips @ UHD
Recording ResolutionUp to 12MP (camera dependent)
Video CompressionH.265 / H.264
Display Outputs2x HDMI
Display Resolution3840x2160 / 1920x1200 / 1920x1080 / 1680x1050 / 1600x1200
Live Display SpeedUp to 1080 ips
Simultaneous Playback64-channel synchronous
Storage8x SATA HDD bays, up to 72TB, RAID 1/5/10
Network1x Gigabit (client) + 3x Gigabit + 2x SFP (video in)
Audio I/O1x RCA in/out + 64/64 via IP cameras
Alarm I/O4 in / 1 out + 64/64 via IP cameras
Operating SystemEmbedded Linux
Camera CompatibilityDirectIP, ONVIF, AXIS, Panasonic
Power100-240V AC, 50/60Hz, 145W
Operating Temperature0°C to +40°C
Dimensions482.6 x 88 x 523.3mm (W x H x D)
Weight12.24kg (with 2 HDDs)
ComplianceFCC, UL, CE, CB, KC, PSE, NDAA Section 889, TAA Compliant
Resources & Downloads

   DR-8564D A&E Specification v1.3

  DR-8564D Data Sheet

  DR-8564(D) Installation Manual v8.2

  DR-8564(D) Operation Manual v8.2

  DR-8564(D) Quick Guide v8.7 ​

   DR-8564D A&E Specification v1.3

  DR-8564D  Datasheet​

   DR-8564(D) Operation Manual v8.2 ​  DR-8564(D) Installation Manual v8.2 ​ ​   DR-8564(D) Quick Guide v8.7
