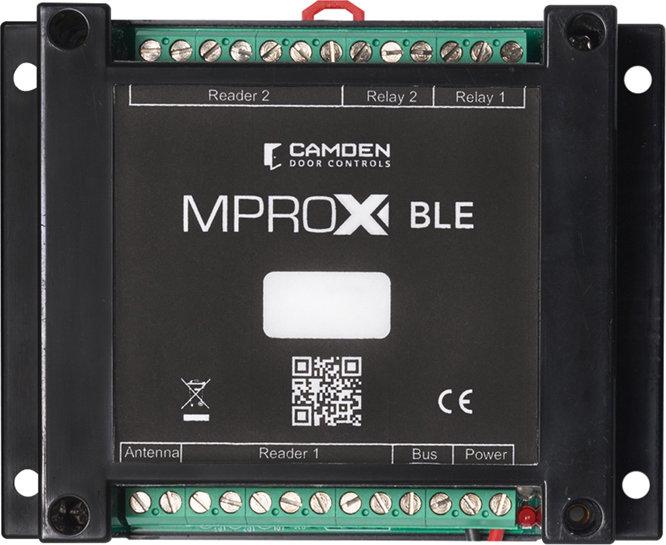

Camden 2 Door MProx BLE controller with 433 Mhz. receiver

CV-603

CV-603 series (MProx-BLE) is an app-based wireless Bluetooth® managed access control system designed to provide 'best in class' security of doors and gates, with up to 2,000 users. The intuitive programming app is Apple® and Android® protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up.

CAD$ 435.10 435.1 CAD CAD$ 435.10

CAD$ 223.13

    This combination does not exist.

    • Programmed via BLE Phone App
    • 2,000 User Capacity
    • Wiegand Reader protocol – 26, 30, 34 and 37 bits
    • Common Alarm Relay – Trigger remote devices
    • Anti-pass back – Higher level of security
    • Sensor Input – For door position switch or vehicle loop detector
    • Form C relays – Fail-safe or Fail-secure electric locks
    • Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
    • Encrypted rolling code and protected AES128 transmission of transmitters
    • Operator Security Levels – 5, configurable
    • 3 year warranty


    Voltage: 12 VDC
    Current Draw: < 100 mA
    Contact Rating: 1A @ 30 VDC
    Users: 2000
    Reader Inputs: 2
    Reader Outputs: 2
    Reader Input Types: Wiegand 26, 30, 34, 37 Bit
    Receiver Frequency: 433 Mhz.
    DIN Rail Mount: Yes
    Temperature Range: -4°F to 131°F (-20°C to +55°C)
    Relay Output Types: Timed 1 - 180 seconds, Momentary, bi-stable / latch
    CV-603 Dimensions: 4-1/2" H x 3-1/2" W x 1-3/4" D  (115mm x 90mm x 44mm)
    CX-TXM-2 Dimensions: 2-5/8" H x 1-1/4" W x 1/2" D  (66mm x 30mm x 11mm)


    Spec Sheets
    CV-603 Spec Sheet_R4pdf10.98
    Manuals
    CV-603 Manual_R1pdf3.24
    CV-603 Reference Manual_R1pdf4.55
    CV-603EA_External Antenna_Manualpdf0.40
    MProx-BT App Set-uppdf1.66
    CV-TXM-2 Manualpdf0.36
    Application Spec Guide
    Access Control (Security)_1 Door w/ Alarm_Wired_Ref 2111Apdf1.29
    Access Control (Security)_1 Door w/ Alarm_No Touch_Ref 2111Cpdf1.39
    Access Control (Security)_Vehicle Gate Control_Wired_Ref 2221Dpdf1.14
    Support
    CV-603 Powerpoint Overviewpresentation26.87
