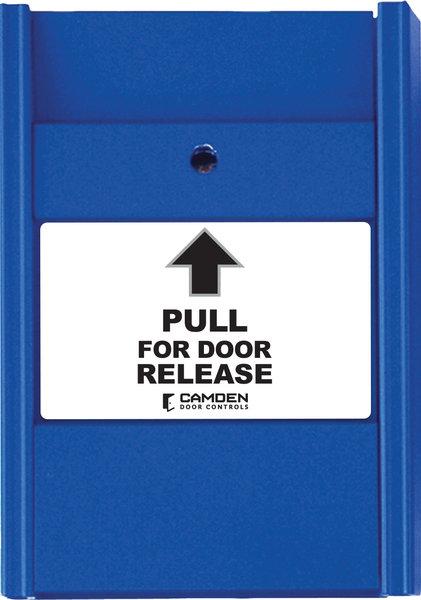

Camden CM-700 Series 'Universal' Blue Pull Stations

CM-703U

Camden Universal' blue pull station, (1) x N/C + (1) x N/O - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'

CAD$ 66.14 66.14 CAD CAD$ 66.14

CAD$ 33.92

    This combination does not exist.

    CM-700 Series 'Universal' pull stations and pull stations with sounder meet the stringent demands of emergency pull station controls. They are designed for single gang mounting and protrude only 3/4" from the wall. They are easily reset with a small screwdriver. Ideal for door release and emergency exit applications. 'Universal' models are supplied with 4 message labels.

    'Universal' Labels

    • Ideal for use with magnetic locks in access control applications
    • Heavy duty vandal resistant design
    • English, French and Spanish versions available
    • Available with N/O, N/C or both N/O and N/C switches
    • Optional built-in sounder
    • Optional clear lift cover
    • Convenient Wiring Terminal
    • Standard single gang mount
    • 3 year warranty

    Construction:

    Extruded aluminum

    Mounting:

    Single gang electrical box

    Contact Rating:

    1 Amp @ 30 VDC

    Sounder:

    85dB @ 10cm
    40 mA @ 12 VDC

    Dimensions:

    4-1/2" x 3-1/2" x 1-3/8"
    (114mm x 90mm x 37mm)

    Spec Sheets

    CM-700_Spec Sheet_R3

    pdf

    1.33


    Manuals

    CM-700 Series Manual

    pdf

    0.39


    Reference Guides

    Special Purpose Products_Cross Reference

    pdf

    0.14
