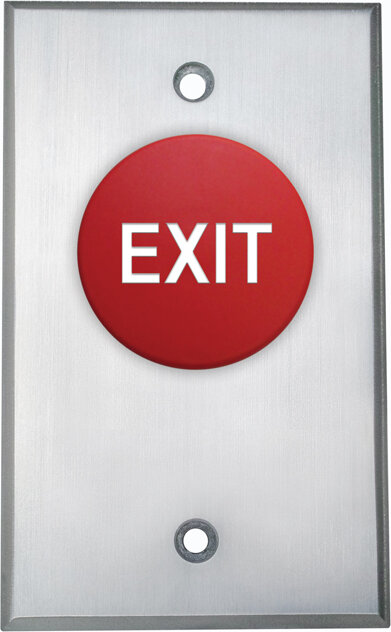

Camden 1 5/8" Mush Push Button"EXIT/ SORTIE" Alum Faceplt N/O/N/C

CM-4020RES https://mysecurity.odoo.com/web/image/product.template/112242/image_1920?unique=803d504

CAD$ 134.88 134.88 CAD CAD$ 134.88

CAD$ 69.17

Not Available For Sale

This combination does not exist.

CM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate. Available in red, blue, or green (black, yellow on request) and with various logos or words engraved on the button.
Faceplates are cast with heavy duty aluminum and available in single gang or narrow widths. Push button options are spring return, push/pull, and push/turn to release operation. May also be ordered with integrated pneumatic time delay. If no color is indicated, RED will be supplied.

  • Indoor and outdoor applications
  • Red, green, or blue mushroom button
  • Large, paint filled engraved symbols or words on button
  • 1/4" thick aluminum faceplate and HD button are vandal and tamper resistant
  • 3 year warranty with '2 for 1' replacement


Voltage:12-24 VDC
Contact Type:SPST and DPST models
Switch Type:Momentary / Maintained / Push-Pull / Push-Turn
Current Rating:6 A @ 30 VDC
Temp Range:-13°F to 158°F (-25°C to 75°C)
Switch Life:100,000 cycles
Std. Finish:Brushed Aluminum
Dimensions:
CM-4000:4-1/2" x 2-3/4" x 1-3/4"
(114mm x 40mm x 44mm)
CM-4100:4-1/2" x 1-3/4" x 1-3/4"
(114mm x 44mm x 44mm)
Spec Sheets
CM-4000-5000-7000-8000_Spec Sheet_R4pdf0.59
CM-8000-8100_Spec Sheet_R1pdf0.51
Manuals
CM-4000_Manual
pdf


CM-8000-8100_Manualpdf0.43
