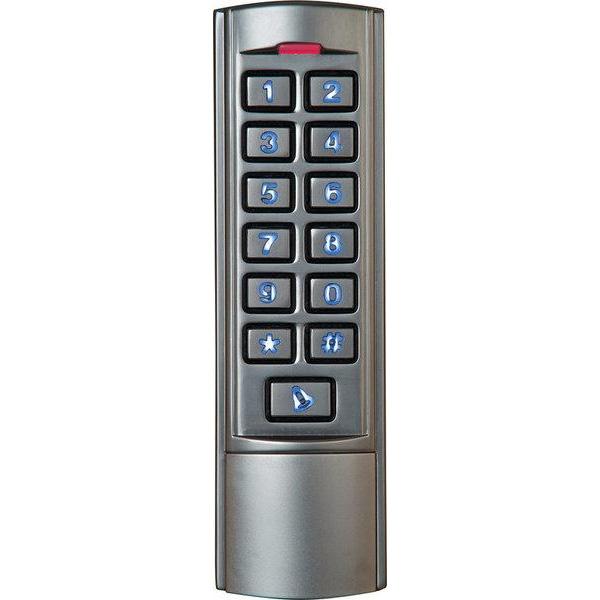

Camden 2,000 Users, Slim Line, Surface Mount, (1) Form 'C' Relay, 12 VDC
CM-110SKCamden surface mount keypads are rugged, weather and vandal resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, ‘Request to Exit’ inputs, tamper alarm and support up to 2,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors or other electrical device.
| Voltage: | CM-550SK: 12 VDC +/- 10% CM-110SK:12 VDC |
| Protection: | CM-110SK: IP68 CM-550SK: IP65 |
| Current Draw: | CM-110SK: 60 mA CM-550SK: 50 mA |
| Contact Type: | CM-110SK: (1) Form ‘C’ CM-550SK: (2) Form 'C' |
| Contact Rating: | CM-110SK: 3 A @ 30 VDC CM-550SK: 2 A @ 30 VDC |
| Wiegand Interface: | CM-110SK:8 bit burst CM-550SK: NA |
| Time Delay: | 0 – 99 seconds |
| Alarm Time: | 0 – 3 minutes |
| Temp Range: | CM-110SK: -49°F/+140°F (-45°C/+60°C) CM-550SK: -49°F/+113°F (-45°C/+55°C) |
| Dimensions: | CM-110SK: 6"H x 1-3/4"W x 1"D (152mm x 45mm x 25mm) CM-550SK: 4-13/16"H x 3-1/8"W x 1-1/16"D (121.67mm x 79.5mm x 26.42mm) |
Product Overview
The X1100 Four Door Controller and Power Kit comes with an X1100 Door Controller and an X100 Two Reader Expansion Module pre-wired to a 12/24 VDC dual-voltage power supply. Installation is easy with this self-contained kit that can provide power for a complete 3- or 4-door access control system.
Main Features
Four reader inputs
Eight relay outputs
Eight programmable inputs
Pre-assembled to fully power a 3- or 4-door system
Scan-to-add card format and serial detection
Control doors and manage users from the Alarm.com app
User-friendly, flexible scheduling
Configure hardware using web or app for easy installation
Plug & play installation — no networking expertise required
General Information
Name: Alarm.com ADC-AC-X1100-4PSE HID Aero 4-Door/Reader Controller and Power Kit, Alarm.com
Category: Alarm.com, Access Control, Control Panels, Control Panel Kits
UPC Code: 850010773193
Country of Origin: United States. Country of origin is subject to change.Specifications
Technical Information
Number of Doors
4
