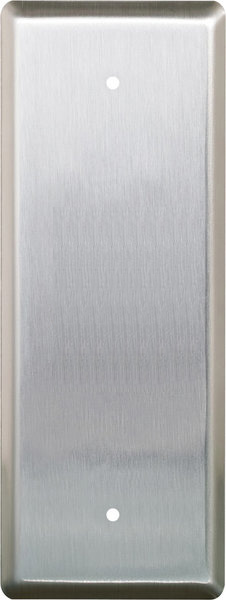

Camden CM-25 Narrow Push Plate Switch Vertical Mounting
Specialty finishes are available as a custom order. Options include Satin Brass, Oil Rub Bronze, Polished Brass, and Antique Brass. To order a specialty finish, please reach out for pricing and availability.
Product images reflect the logo that will appear on the switch, and are not guaranteed to be the same size shown in the images above.
FEATURES
- CM-25 & CM-26CB: 4-1/2” x 1-3/4” (114mm x 44mm) faceplate, mounts in aluminum jamb or in surface boxes
- CM-35: 4-1/2" x 2" (114mm x 50.8mm) faceplate, conforms to new OBC requirements and mounts on single gang box
- Durable stainless steel construction
- All-Active design requires minimal actuation force
- Meets ADA requirements
- Ultra quiet operation
- Permanent debossed or laser engraved graphics
- 3 year warranty with '2 for 1' replacement
SPECIFICATIONS
| Voltage: | 12/24V AC/DC |
| Contact Type: | N/O SPST |
| Switch Type: | Momentary |
| Contact Rating: | 3 A @ 30 VDC |
| Temp Range: | -40°F to 140°F (-40°C to +60°C) |
| Dimensions: | CM-25 & CM-26CB: 4-3/16" x 1-3/4" x 1-3/16" (113mm x 44mm x 30mm) CM-35: 4-1/2"x 2-3/4" x 1-3/16" (114mm x 70mm x 30mm) |
| Std. Finish: | US32 / C32D |
