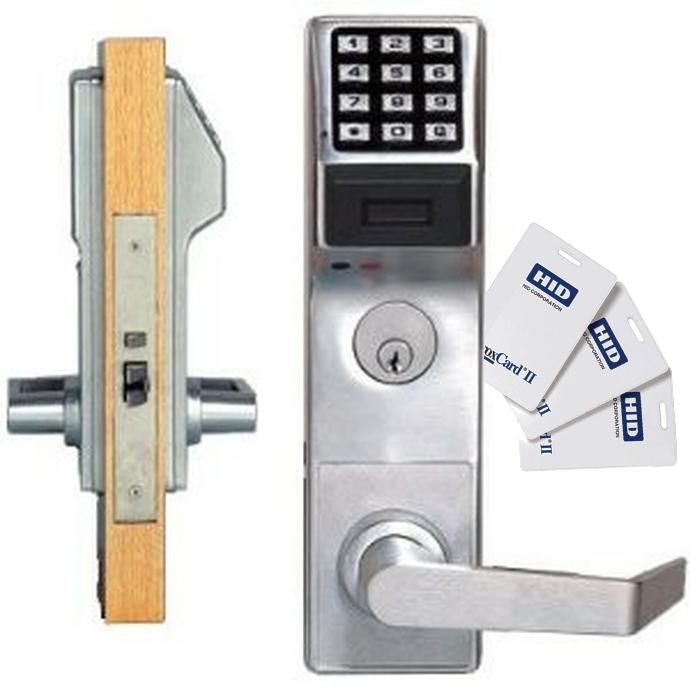

Alarm Lock PDL3500 Series Mortise lock Keypad & Proximity

CAD$ 2,361.66 2361.66 CAD CAD$ 2,361.66

CAD$ 1,211.11

    • Right Hand
    • Left Hand
    • Deadbolt
    • Classroom

This combination does not exist.

Trilogy high security mortise locks with and without prox


PDL3500 Series mortise lock with built in HID prox reader, similar to DL3500 Series, but with:

2000 user codes (3-6 digits) and/or HID prox cards/fobs

Multilevel security - Master; manager; supervisor; basic users

Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool

PC programming/reporting

Quick passage mode (without being in program mode)

Program data transferred to lock via AL-PCI2 or AL-DTMIII

5AA battery-pack operated; 75,000 cycles, typ.

5 Architectural finishes

Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

Alarm Lock's standalone Trilogy Locks provide safe, convenient keyfob-activated classroom lock-down, from safely inside the classroom, with a typical range of up to 100'. A favorite in K-12s, colleges and universities for their easy deployment and dependable, affordability, field-proven Trilogy locks are both advanced and rugged Grade 1. Starting with the cylindrical DL3200 or PDL3000, and Mortise P/DL3500 Series, each lock can support up to 50 tiny keyfobs, used with the Trilogy Remote Release Kit. This great feature-set can be incorporated within any new installation, replacing any standard lockset, or they can be easily field-retrofit to existing Trilogy PIN and/or Prox ID Locks, to add this lockdown campus security feature.

For a global lockdown solution, Trilogy Networx are the wireless networked version as above, and can be locked down or unlocked campus-wide in under 10-seconds, from a keyfob, button or from the school server.

PDL3000 & PDL3500 Programming Instructions
PDL3500 Specification Sheet


HANDING Right Hand or Left Hand
FUNCTION Deadbolt or Classroom
