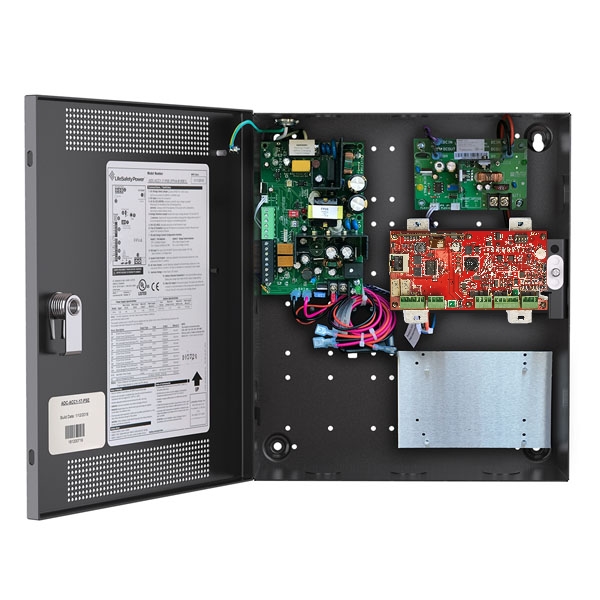

Alarm.com LP1501 PoE Door Controller and Power Kit
ADC-AC-LP1501-PSESmarter Access Control is a powerful and easy-to-use solution for businesses ranging from small shops to large commercial properties. Designed for high-traffic business environments, the LP1501 PoE Door Controller & Power Kit comes with an LP1501 pre-wired to a 12/24 VDC dual-voltage power supply.
Installation is easy with this self-contained kit that can provide power for a complete 1 or 2 door access control system. Add additional readers, relay outputs, and I/O inputs to the system by mounting another LP1501 PoE Door Controller or Single Reader Expansion Module (both sold separately) on the included mounting plate.
Features
- Two reader inputs
- Two relay outputs
- Pre-assembled for PoE powered systems
- Support for eight expansion modules and up to 17 readers
Benefits
- Scan-to-add card format and serial detection
- Control doors and manage users from the Alarm.com app
- User-friendly, flexible scheduling
- Configure hardware using web or app for easy installation
- Plug & play installation — no networking expertise required
Power supply specifications
Input Voltage | 120 / 208 / 230V AC 50/60 Hz |
---|---|
Main Outputs | 1.5A @ 12V DC (B100) 1.5A @ 24V DC (FPV4) |
Battery Charge Current | 0.7 or 1.60A Selectable |
System BTU/Hour | 34 @ 12V, 41 @ 24V |
Efficiency | 85% 120V AC 60 Hz In, Full Load |
Certifications | UL294, UL603, UL1076 ULC S318, S319, CSA C22.2#107.1 CSA 22.2 #60950 RoHS Lead free CE Approved |
Operating Temperature | -4 - 122°F (-20 - 50°C) |
Door Controller specifications
Input Power | PoE, PoE+, or 12 VDC, 1.8 A max |
---|---|
Output Power | PoE: 12 VDC @625 mA, PoE+ 12 VDC: 12 VDC @1.25 A |
Inputs | One dedicated reader input, one switchable reader/two-wire RS-485 input, two programmable inputs, one dedicated tamper input |
Outputs | Two relay outputs (2A @ 30V DC), single-wire LED control, single-wire buzzer output |
Certifications | HSPD-12/FIPS201 compliant, CE compliant, UL 294 and UL 294B recognized, RoHS, FCC Part 15 Class A, NIST certified encryption |
Dimensions (L x W x H) | Without bracket: 5.5 x 2.75 x 0.96” (140 x 70 x 24 mm), With bracket: 5.5 x 3.63 x 1.33” (140 x 92 x 34 mm) |
Temperature | 32°F - 158°F (0 - 70°C) operational -67°F - 185°F (-55 - 85°C) storage |
Operating Humidity | 5-95% (non-condensing) RH |
Kit specifications
Dimensions | 14 x 12 x 4.5" (35.6 x 30.5 x 11.4 cm) |
---|---|
Weight | 13 lbs. (5.9 kg) |
Conduit Knockouts | 1/2" (15mm) and 1 1/4" (32mm) |
