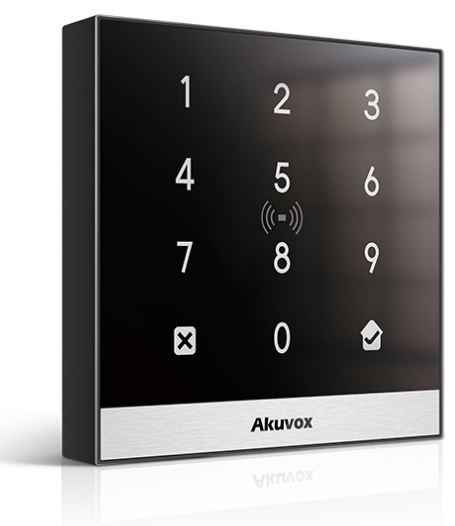

A02 IP-based Access Control Terminal

A02

Smart, Compact, and Stylish Access Control Terminal

A02 is an IP-based access control terminal that combines door controller and card reader in one device. It supports PIN codes, RFID cards, and mobile access via NFC, offering users flexibility in credentials options.

A02 Specification

·         Physical & Power

Front panel: Touch Keypad

Frame: Aluminum Alloy

RFID card reader: 13.56MHz & 125kHz

Relay out: 1

Inputs: 2

Wiegand: Support

Speaker: 8Ω / 0.5W

Tamper proof alarm: Support

Ethernet port: RJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC connector (if not using PoE)

Power output: 12V 600mA

IP Level: IP65

Installation: Flush-mounted or Wall-mounted

Dimension: 86 x 86 x 33 (mm)

Working Humidity: 10~90%，no condensing

Working Temperature: -20°C ~ +55°C

Storage Temperature: -30°C ~ +70°C

·         Capacity

User Capacity: 20,000

Card Capacity: 20,000

Event Log: 100,000

·         Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs

·         Networking

Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

·         Door Entry Feature

Access schedule export/import

Access level management

Supports switch to reader mode

Door access logs query and export

Flexible scheduling and attendance management
