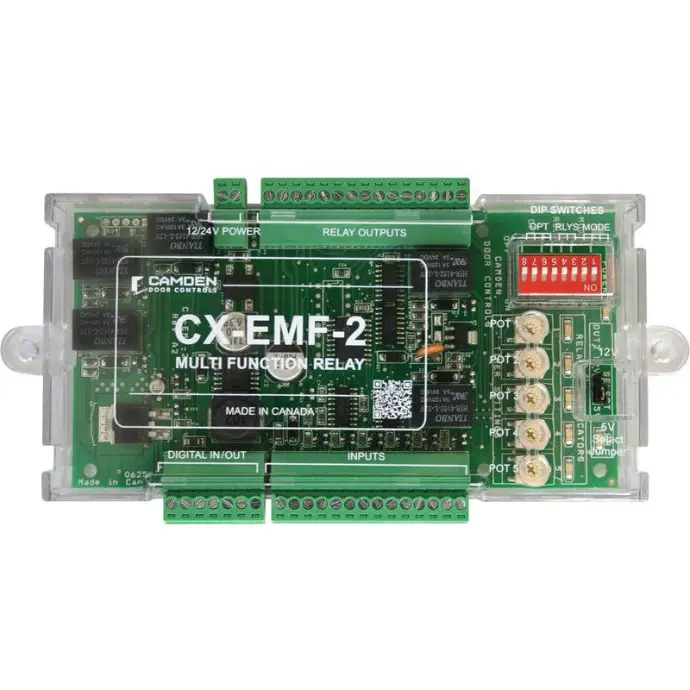

Camden Multi-function relay - Plastic enclosure
CX-EMF-2Camden CX-EMF-2 is a multi-function relay module in a plastic enclosure designed for commercial access control and door automation systems.
The Camden CX-EMF-2 is a versatile multi-function relay module designed to expand control capabilities within access control and door automation systems. Housed in a durable plastic enclosure, this module provides flexible signal management for commercial security installations.
The CX-EMF-2 is ideal for coordinating inputs and outputs between access control panels, electric strikes, magnetic locks, door operators, push buttons, and other system components. Its multi-function capability allows installers to manage timing, signal isolation, and device sequencing in more complex installations.
Designed for professional use, the enclosed configuration helps protect internal components while maintaining a clean and organized installation. The CX-EMF-2 is suitable for offices, healthcare facilities, schools, retail environments, and industrial sites requiring dependable relay control.
Key Features:
• Multi-function relay module
• Protective plastic enclosure
• Designed for access control and door automation systems
• Supports signal coordination and device control
• Ideal for commercial installations
• Compact and installer-friendly design
The Camden CX-EMF-2 provides flexible relay control for professional access control and security system applications.
- Microprocessor control
- 3 mode selector switch
- 5 adjustable timers, 1-30 seconds each
- LEDs for visual confirmation
- May be used on normally locked and normally unlocked restroom doors
- 12/24V AC/DC
- Plug-In connectors facilitate wiring
- SPDT contacts rated 3 amps @ 30 VDC
- 7 dry inputs
- Use with fail-safe and fail-secure locks
- Enclosed plastic case or mounted in metal enclosure
- 3 year warranty
| Voltage: | 12/24V AC/DC |
| Current Draw: | 150 mA Nominal, 500 mA Maximum |
| Response Time: | .3 Seconds |
| Input: | 7 Dry Momentary Contacts and 1 Digital |
| Output: | 5 x Form 'C' (SPDT), 1 Digital Output |
| Contact Rating: | 3 A @ 30 VDC |
| Electrical Life: | 500,000 Operations @ 1/2 rated Capacity |
| Time Delay: | 5 Pots adjustable from 1-30 Seconds |
| Dimensions: | CX-EMF-2: 6-7/8"L x 2-7/8"W x 7/8"D (173mm x 72mm x 22mm) CX-EMF-2M/2ABM: 12"L x 7-1/2"W x 3-3/4"D (305mm x 190mm x 95mm) |
| Mounting: | CX-EMF-2: Double Sided Foam Tape CX-EMF-2M/2ABM: 4 x #8 Metal Screws |
| Enclosure: | CX-EMF-2: Gray Plastic Case CX-EMF-2M/2ABM: Beige Metal Cabinet |
