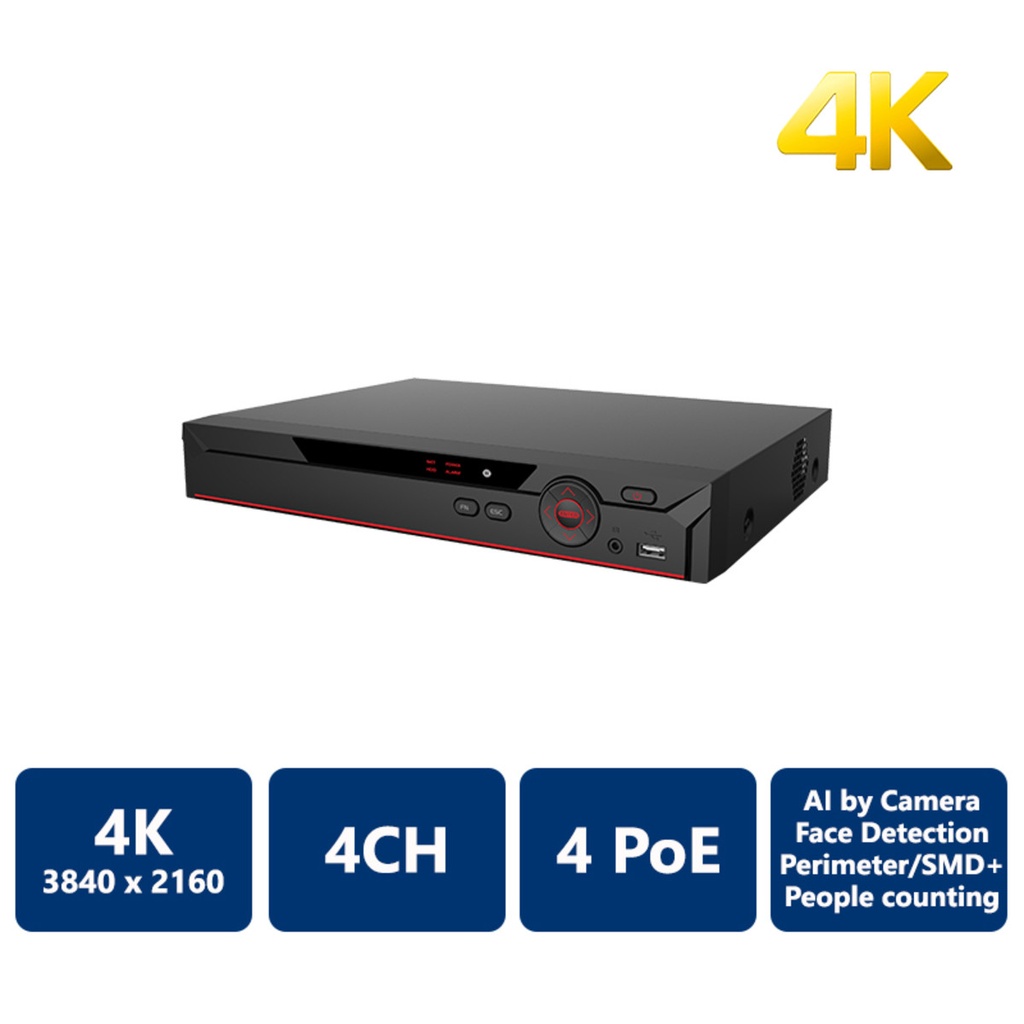

4 CHANNEL COMPACT 1U 4POE 4K&H.265 NVR
NVR-NV41A04-P4-4K-S2LDescription
- New 4.0 user interface, Security baseline 2.1
- H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
- Supports mainstream cameras of ONVIF and RTSP protocols
- P2P remote surveillance, video play on mobile device
- VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
- AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
- Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
Information
Main Processor Industrial-grade embedded processor
OS Embedded Linux
Operation Interface Web/operating in local GUI
Access Channel 4
Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 4 × 1080p@30 fps
Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display 1 , 4 views
Third-party Camera Access ONVIF; RTSP
Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio PCM/G711A/G711U/G726/AAC
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF(profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; firefox
Multi-channel Playback Up to 4 channels for playback
Record Mode Manual record; alarm recording; SMD recording; smart recording
Storage Local HDD; network
Backup USB storage device
Playback Function 1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
General Alarm Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email
Audio Input 1 × RCA input
Audio Output 1 × RCA output
HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB 2 (1 × front USB2.0; 1 × back USB2.0)
HDMI 1 (supports up to 4K resolution output)
VGA 1
Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE 4
Power Supply 48 V/53 VDC, 1.25 A/1.33 A
Power Consumption < 10 W (HDD not included, idling)
Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Net Weight 0.86 kg (1.90 lb)
Gross Weight 1.86 kg (4.10 lb)
Product Dimensions 260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98")(W × L × H)
Package Dimensions 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09")(W × L × H)
Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 10c/o~93c/o
Storage Humidity 30%~85%
Operating Altitude –10 °C to +55 °C (+10 °F to +131 °F)
Operating Conditions 3000 m (9842.52 ft)
Installation Desktop mounted
Certifications CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
