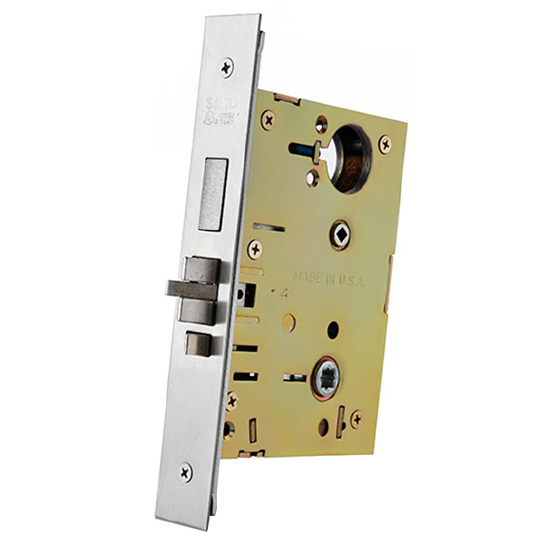

Salto XS4 Mortise Locks - ANSI

Specially designed for those doors that need an ANSI mortise lock ANSI A 156.13 Grade 1 and a privacy function with a deadbolt for Hospitality purposes. It includes integrated electronic detection to monitorize in real-time the door status, providing an easy to install solution without any additional hardware or drilling needs.

Features

• Grade 1 ANSI mortise lock case.
• Suitable for ANSI standard escutcheons and electronic cylinders.
• High security heavy duty mortise lock for exterior and interior ANSI standard doors.
• Lock case, latch and deadbolt made of steel.
• Equipped with auxiliary latch (anti card system) to prevent unwanted intrusions.
• Includes standard strike plate and dust box for an optimal installation.

Technical Characteristics

• Axe distance 62mm.
• Compatible with mortise cylinders 1-1⁄8''.
• Squared front plate.
• 8mm (5⁄16'') square spindle.
• Turning angle 42º.
• Backsets available: 70mm.
• Front plates available: 32mm (1-1⁄4''x8") and 27mm (1-1⁄16''x 8").

Handing

• Reversible latch for more convenience.
• Adjustable face plate.

Operations and functions

• Intelligent integrated detectors for deadbolt and door position to monitor the status of the door without any additional hardware or fitting.
• Detection of intrusion alarms.
• Opened and closed status of doors through Salto Wireless technology.
• Optional integrated electronic privacy detector for door/room status real-time monitoring.
• Anti-panic safety function: In locked position, turning the inside handle retracts auxiliary latch and deadbolt simultaneously.
• Automatic deadbolt model is available.
• Mortise lock available with or without deadbolt for additional security.
• The handle retracts the latch to normal position.

Technical Drawing
