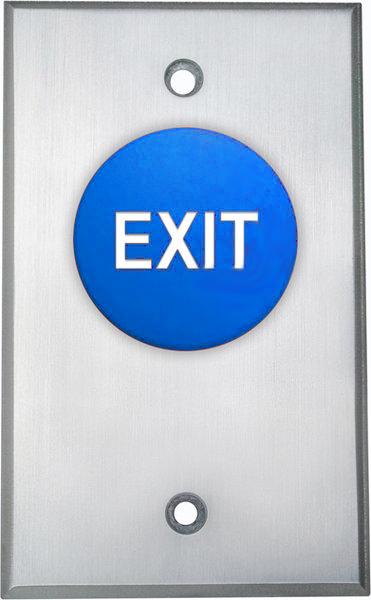

Camden 1-5/8" Blue Pushbutton, Aluminum Faceplate Spring Return, N/O & N/C, Momentary (ADA)
CM-4020BECM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate.
FEATURES
- Indoor and outdoor applications
- Red, green, or blue mushroom button
- Large, paint filled engraved symbols or words on button
- 1/4" thick aluminum faceplate and HD button are vandal and tamper resistant
- 3 year warranty with '2 for 1' replacement
SPECIFICATIONS
| Voltage: | 12-24 VDC |
| Contact Type: | SPST and DPST models |
| Switch Type: | Momentary / Maintained / Push-Pull / Push-Turn |
| Current Rating: | 6 A @ 30 VDC |
| Temp Range: | -13°F to 158°F (-25°C to 75°C) |
| Switch Life: | 100,000 cycles |
| Dimensions: | CM-4000: 4-1/2" x 2-3/4" x 1-3/4" (114mm x 40mm x 44mm) CM-4000: 4-1/2" x 1-3/4" x 1-3/4" (114mm x 44mm x 44mm) |
| Std. Finish: | Brushed Aluminum |
