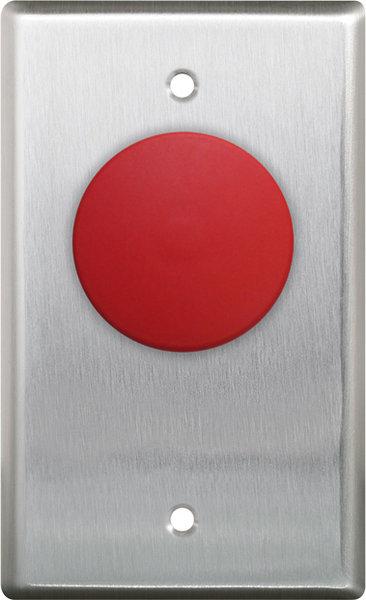

Camden 1 5/8" Mush Push Button S.Gang S/S FP N/O contact Red Button

CM-400R

CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.

CAD$ 93.72 93.72 CAD CAD$ 93.72

CAD$ 46.86

    This combination does not exist.

    • 1-5/8" (40mm) diameter button
    • Vandal resistant free-spinning, heavy-duty button
    • Vandal resistant 18 gauge stainless steel faceplate
    • Single gang, double gang and narrow faceplates
    • 3 year warranty with '2 for 1' replacement

    Voltage:

    12/24V AC/DC

    Contact Rating:

    6 A @ 30 VDC

    Switch Life:

    100,000 cycles

    Temp Range:

    32°F to 85°F (0°C to +85°C)

    Std. Finish:

    Brushed Aluminum

    Dimensions:

    Single Gang: 4-1/2" x 2-3/4" x 1-1/2"
    (114mm x 70mm x 42mm)

    Narrow: 4-1/2" x 1-3/4" x 1-1/2"
    (114mm x 44m x 42mm)

    Manuals

    CM-400_Manual_R2

    pdf

    0.54


    CM-450RL-7724-CPC_Manual

    pdf

    0.47


    Spec Sheets

    CM-400_Spec Sheet_R7

    pdf

    0.67


    Reference Guides

    Push Button Switch_Cross Reference

    pdf

    0.15
