Salto XS4 Original+ Wide Body Escutcheon - ANSI

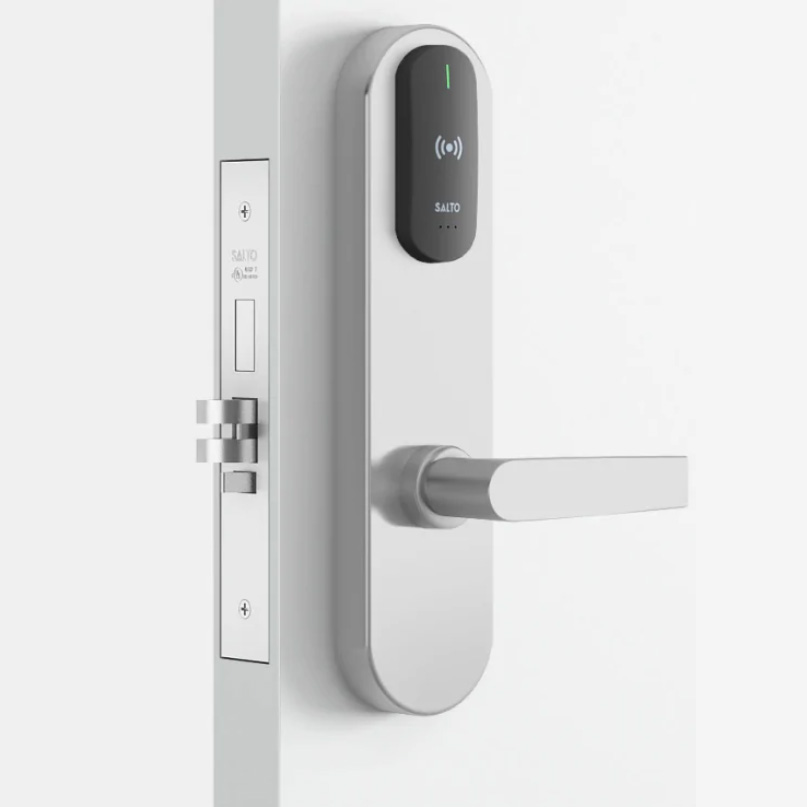

The Salto XS4 Original+ is designed to fit most ANSI profile doors, mortise, cylindrical and tubular locks. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions. The XS4 Original+ incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.

• Simple installation is possible on any type of door.
• Body and escutcheon made of steel.
• Available with mechanical cylinder cut outs for key override or access lock outs (override mortise cylinders).
• Mechanical or electronic privacy option.
• The lock can always be opened from the inside (single action panic feature works in conjunction with the Salto LA1T15 series mortise lock).
• Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

Technical Characteristics

• Covers door thicknesses: From 32 (1-3⁄8") up to 120 mm (4-¾").
• Dimensions: 290mm (11-27⁄64") x 67mm (2-5⁄8") x 20mm (25⁄32").
• Clutch mechanism escutcheon; when unlocked handle moves freely.
• Reversible handle left or right escutcheon.
• Handle rotation: 52º.
• Compatible Override Mortise Cylinder length: 1-1/8".
• Compatible with ANSI standard cylindrical and mortise locks.
• Square spindles available: 8mm (5⁄16"), 7mm diamond (9⁄32"), 8mm split (5⁄16"), 7mm diamond split (9⁄32") and 7,6mm (19⁄64").

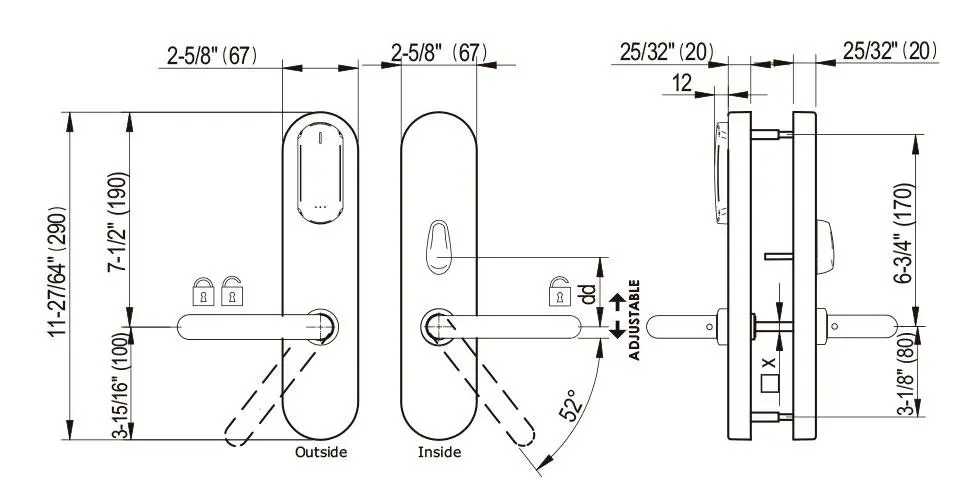

Technical Drawing

 DATA SHEET
