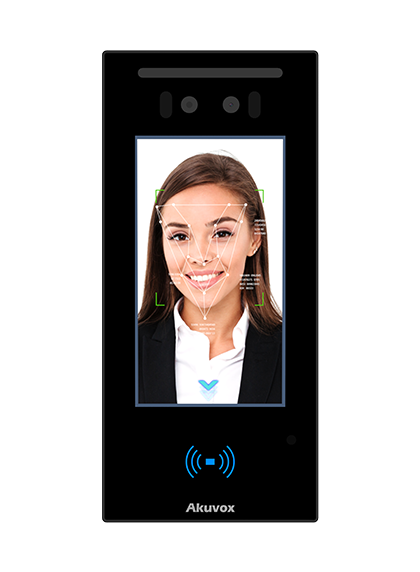

A05 Smart Access Control for Modern Buildings

A05

Smart Access Control for Modern Buildings

A05 is a commercial-grade access control terminal, which offers fast, safe and convenient access control via AI-powered face recognition, mobile app, NFC, or QR codes. It is typically used in commercial and residential applications.

​

A05 Specification

·         At a Glance

Visible light facial recognition;

Better hygiene with touchless biometric authentication, fever and mask detection;

Anti-spoofing algorithm against photo and video attack;

20,000 face capacity & 20,000 card capacity;

Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.7%;

Multiple verification methods including: face, cards and QR codes;

Stand-alone operation;

Configuration via web browser;

·         Anti-epidemic Function

Mask Detection

Body Temperature Detection [Only A05S(MD01) & A05S(MD02) support]

·         Physical & Power

Housing Material: Plastic

Display: 5 Inch IPS LCD, 1280x720

Camera: 2M pixels, WDR

Wiegand Port: Support

RS485 Port: Support

RF Card Reader: 13.56MHz, NFC

Relay In / Out: 1 / 1

Ethernet Port: RJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC Connector (if not using PoE)

Tamper: Support

Installation: Wall-mounted

IP Level: IP65

Working Humidity: 10~90%, no condensing

Working Temperature: -20℃~+60℃

·         Identification

Identification Mode: Face, RFID Card, QR code

Identification Speed: ＜200ms

·         Capacity

Face Capacity: 20,000

Card Capacity: 20,000

Event Log: 50,000

·         Forehead Temperature Measurement

Only A05S(MD02) support

Distance: 0.3M ~ 1M

Accuracy: 0.1℃

Deviation: ±0.3℃

Range: 34℃ ~ 45℃

·         Wrist Temperature Measurement

Only A05S(MD01) support

Distance: 1cm ~ 5cm

Accuracy: 0.1℃

Deviation: ±0.3℃

Range: 34℃ ~ 45℃
