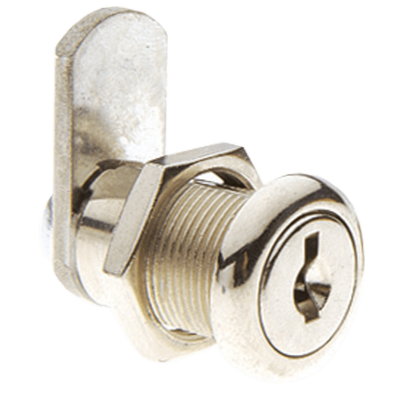

Capitol Industries 9110U-14-11-KA549 Cam Lock 1-1/8" Keyed Alike 549
9110U-14-11-KA549Used in a multitude of basic security applications, this cam lock can be combined with any standard or custom cam to fit your assembly.
Used in a multitude of basic security applications, this cam lock can be combined with any standard or custom cam to fit your assembly.
- 230 Key codes
- Keyed Alike, Keyed Different, and/or Master Keyed
- N54G Keyway
- Includes 2 keys
- Removable Core Available
ROTATION
- 1/4 Turn or 1/2 Turn
- Right or Left
- Start at 12, 3, 6, or 9 o’clock
CHOICE OF CAMS
The table below outlines the standard cams we offer. We have hundreds more that cannot be shown so simply. Please contact us to see how we can help you find the right fit for your application.
FINISH
- Nickel (Standard)
- Brass, Dull Black, and others available upon request
MOUNTING OPTIONS
- Hex Nut
- Shell Clip (Specify wall thickness)
CAM MOUNTING
- SEMS Screw
OTHER OPTIONS
- Internal O-Ring
- Fixed Stop Washer
