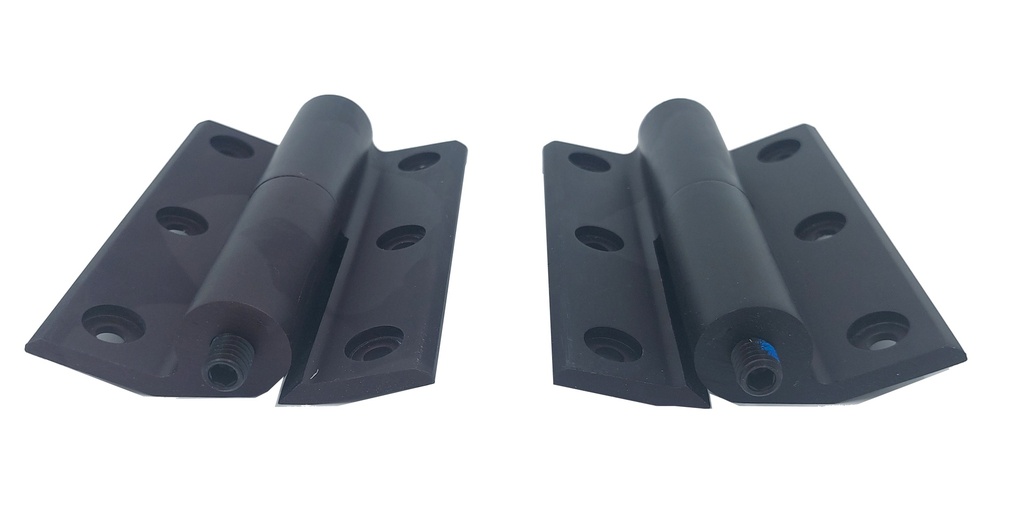

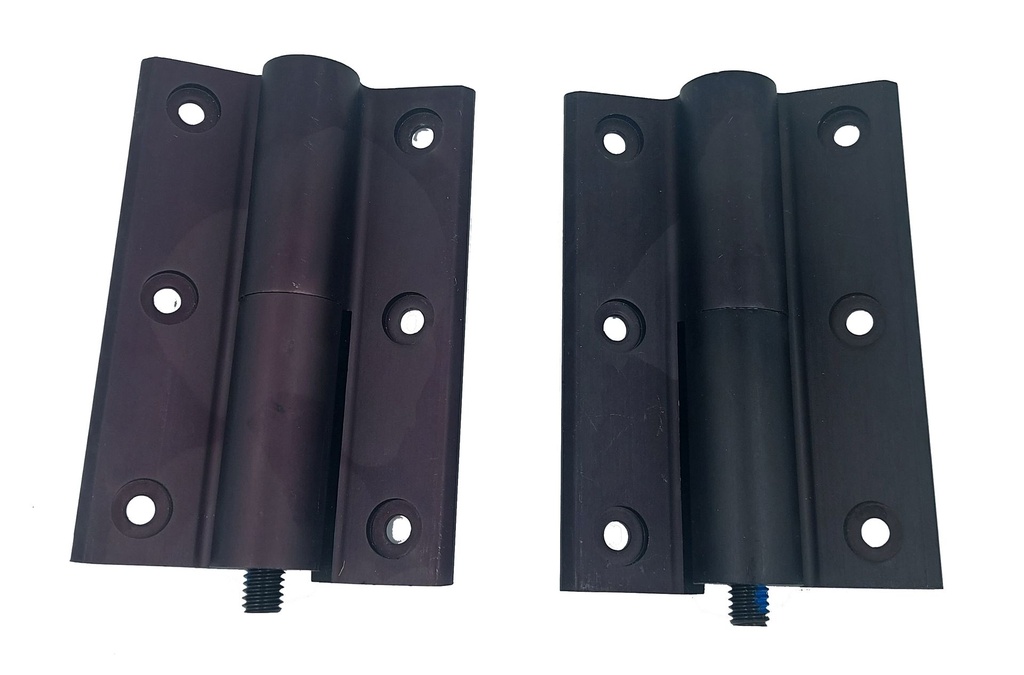

Dorex Universal Hinge Replacement Kit Dark Bronze

• Non-handed
• Surface mounted
• For flush mounted or ¹⁄₈″ recessed doors
• Accommodates doors up to 300 lbs (136 kg)
• ¹⁄₈″ vertical door adjustment or ¹⁄₈″ recessed doors
• High quality anodized aluminum extrusion; precision machined
• Top and bottom bearing balls with two anti-friction roller bearings for smooth hinge pin rotation
• Easy and quick installation; instructions included with each set

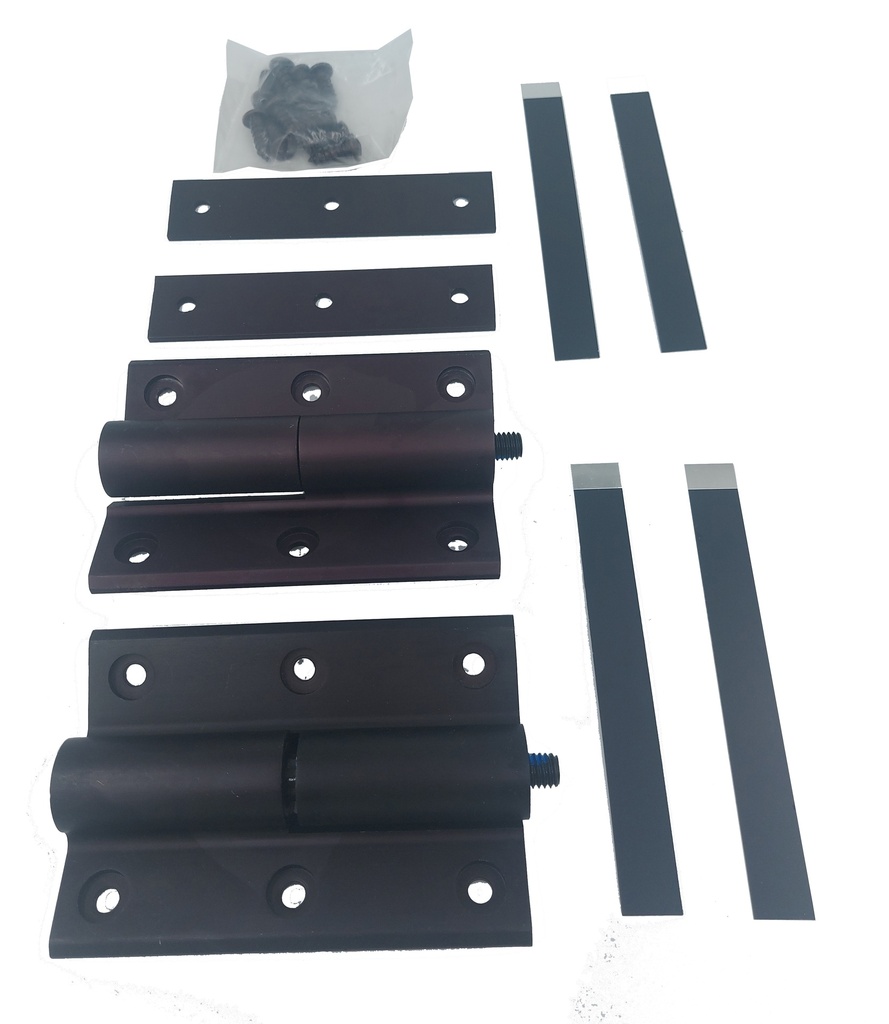

• Each boxed set consists of:
  2 Hinges of 5” (127 mm) x 3 ¹⁄₄″ (82.6 mm)
  4 Adhesive cover strips
  2 Shim Plates ¹⁄₈″ (3.2 mm) offset (#1020S)
  1 Hex key
  12 Tamper-resistant fasteners

Product Page

04.080

Disclaimer

• We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
• All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
• We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
• Do not exceed the maximum weight or dimensions recommended by the manufacturer.
• All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
