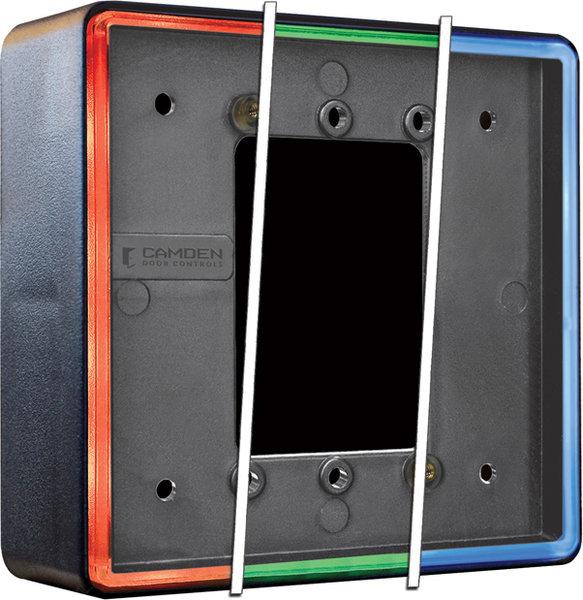

Camden CM-54i Flush Mount Illuminated Push Plate Enclosures
CM-54-I
CM-55 (flush square) illuminated push plate enclosures and switch kits provide high visibility and enhanced user convenience in ADA compliant automatic door and other applications.
FEATURES
- Illuminated surface and flush mount box compatible with any CM-40, CM-45 or CM-46 'All Active' push plate switch
- Red/Green and Red/Green/Blue models available
- High efficiency LED technology
- Improves switch visibilty, even in daylight
- Flame and impact resistant polycarbonate construction
- Selectable 12/24V AC/DC
SPECIFICATIONS
| Voltage: | 12 or 24V AC/DC |
| Current Draw: | CM-54i/CM-55i: 130 mA. CM-54GR: 110 mA. |
| Lumina: | Blue: 1500 MCD, Red: 5760 MCD, Green: 3780 MCD |
| Contact Type: | CM-54i/CM055i/CM-57GR: 1 SPDT Form 'C' |
| Contact Rating: | 3 A @ 30 VDC |
| Sounder: | 85 DB |
| Dimensions: | CM-54: 5-1/4" x 5-1/4" x 2-1/8" (133mm x 133mm x 54mm) CM-55: 6-1/2" x 6-1/2" x 2" (165mm x 165mm x 51mm) CM-57: 6-5/8" Dia. x 2" (168mm x 51mm) |
